Database

• Database is just a bunch of files on disk.
• Storage Manager is the one that maintains the database files
• It organizes files as a collection of pages

Pages

• A Page is a fixed-size block of data:
  • contains record (tuple), meta-data, indexes …
  • MySQL: 16KB (default size, can be configured)
  • SQL server, PostgreSQL: 8KB
• In a page, all records belong to the same table.
• When DBMS reads data, it reads by page.
• MySQL: max size of a row ~ ½ page’s size ~ 8KB (InnoDB engine)

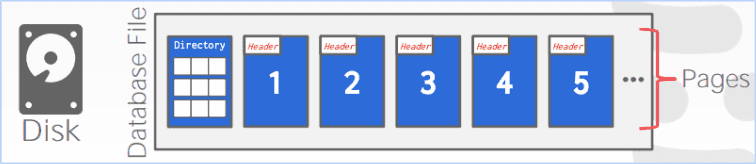

File Organization

• Heap File Organization is a common way DBMS organizes database files on disk
• Each file is an unordered collection of pages.
• A special page called Directory page:
  • at the head of the file.
  • to keep track of the location of data pages in the file
  • to keep track of the number of free slots per page

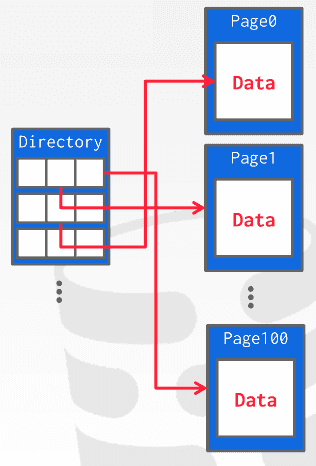

Directory Page

Mapping from Page_id to its position (offset) in the file. => increase read speed.

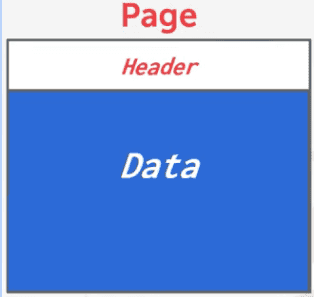

Data Page

• Two parts: header, data
• Header contains metadata: Page Size, Checksum, DBMS version, Number of empty slot,…

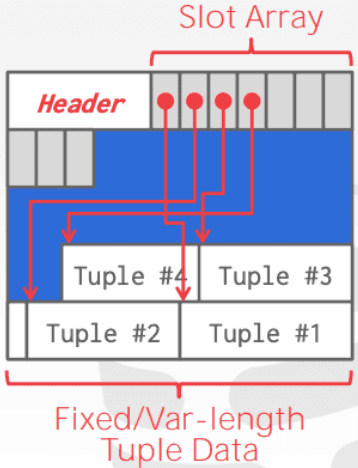

Page Layout

• Slotted page layout: Slot Array: at the beginning of the Page, right after the Header. It maps “slots” to the tuple’s start position offsets.
• The tuples are at the end of the Page
• When insert a new tuple:
  • read the starting location of the last slot used.
  • create a new slot in slot array
  • write the new tuple to the position

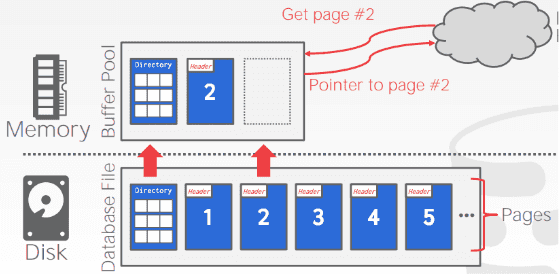

Buffer Pool (== Cache)

• A cache layer in memory (RAM). DBMS use Buffer Pool to improve the performance.
• A region in RAM, organized as an array of fixed-size pages. Frame’s size == Page’s size.
• The page table is a part of the Buffer Pool that map from the page_id to frame_id
• The page directory is part of the heap file that map from page_id to its location in the file.

Buffer pool replacement policies

• The Buffer pool’s size is limited <= RAM’s size (80% RAM)
• DBMS needs to clear a frame to make room for a new page when it is full.
• Replacement policy is the way it decides which page to evict from the buffer pool. (Cache invalidation policy)
  • FIFO
  • LRU

LRU (Least-Recently Used)

• For each page, maintain a timestamp of when it was last accessed.
• When need to evict a page, it selects the one with oldest timestamp.
• Assumption: if a page is accessed recently, it is likely that the page will be accessed again in near future.

E.g: Size of B.P == 3
B.P: [ ] [ ] [ ]
read page 1 => [1] [ ] [ ]
read page 2 => [1] [2] [ ]
read page 3 => [1] [2] [3]
read page 4 => [4] [2] [3]
read page 1 => [4] [1] [3]

disadvantage

Sequential flooding issue:

• when a query performs a sequential scan that reads every page.
• it pollutes the buffer pool with pages that are read once and then never again.

LRU-K Idea

• use a hashmap to store the cache key-value
• use a doubly linked-list (DLL) to store the order each key is accessed.
• when a key is accessed:
  • if it is in the DLL, remove it then add to the end of DLL
  • if it is not in the DLL, and the size of the DLL is full, remove the first element of DLL, and add the new key to the end of DLL.

Index

• A database index is a data structure that improves the speed of data retrieval operations on a database table
• Types: Hash Indexes, B+Tree Indexes, SSTables Indexes
• Disadvantage: additional writes operation, storage space to maintain the index data structure

Hash Indexes

• Based on a Hash Table
  • key: hash code of the indexed columns
  • value: pointer to the corresponding row (page_id, slot_id)
• Only useful for exact look-up. Cannot support range query, unequal condition ( >, <, >=, <=)
• Limitation:
  • Performance can be unstable in case of hash collision: search in hash table: O(n), average O(1)
  • Hash indexes don’t support partial key matching.
    • e.g: if you have index on (Col1, Col2), hash index won’t help if query on Col1 only or Col2 only.
    • select * from student where Col1 = 10; => full scan
    • select * from student where Col1 = 10 and Col2 = 20; => use hash indexes

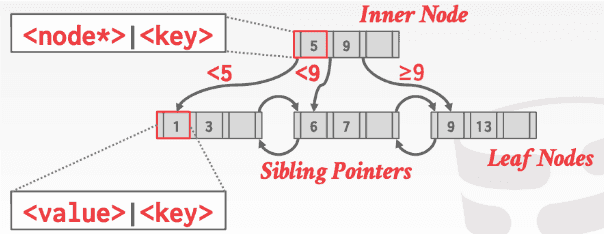

B+Tree Index

• The most common type of Index. Using B+Tree data structure.
• Performance is stable because B+Tree is a self-balanced tree.
• B+Tree of order M has the following properties:
  • Self-balanced: every leaf node is at same depth
  • Each node has M-1 keys and M children.
  • Every node (except root) is at least half-full: M/2-1 <= #keys <= M-1
  • Keys in each node are sorted.
  • Leaf nodes are connected 2-ways (looks like a Doubly Linked List)
• key is indexed column. Value can be pointer to the record (postgres) or the record’s data itself (clustered index of mysql)
• Each leaf node is corresponding to one Page. select * where id = 10; => O(log #keys)

Search

• start from root, search correct child and follow the pointer. keys are sorted => can use Binary search => Runtime ~ O(logN)

Why use B+Tree for index, not BST/AVL/Red-Black Tree

• B+trees are self-balancing while BST are not balancing => can lead to a very tall tree
• B+trees are much shorter than other balanced binary tree structures such as AVL => fewer disk access.
• If we want to retrieve a range of entries in order by key, B+trees is much more efficient than AVL, BST or Hash table, because each node contains a large number of key with sorted key.

What is B+Tree indexes ’s disadvantage?

• more complex than Hash indexes
• write speed is slower than LMS-tree indexes (SSTable)
• for equality query (=, !=, IN), Hash Index is much faster. O(1) on average, B+Tree O(logN)

Type of query that B+Tree indexes support:

• Match full value (same as hash index)
• Match leftmost prefix: index (Col1, Col2, Col3) => B+Tree index can support query on (Col1), or (Col1, Col2) or (Col1, Col2, Col3)
• Match part of the first column: index on Name column => B+Tree index can support query all records having Name start with letter “Qu”
• Match a range of values (>=, >, <= , <)

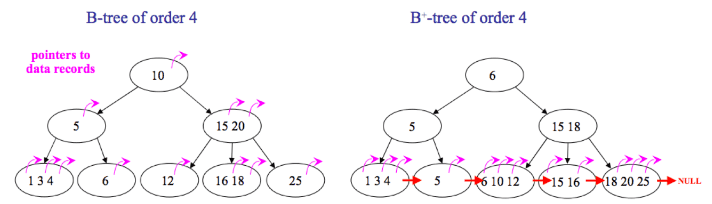

B-Tree Index

• B-Tree is similar to B+Tree except:
  • inner node can contain pointer to records
  • no duplicated key in B-Tree
  • leaf-node are not connected as a Doubly Linked List

B+Tree over B-Tree

• Support full scan: The leaf nodes of B+ trees are linked, so a full scan of all objects in a tree requires just one linear pass through all the leaf nodes.
• Inner node of B+Tree does not have a pointer to data => more keys can be packed in a B+Tree node => reducing the tree’s height.

Indexes best practice

• Only index on isolating columns. should not be part of an expression or be inside a function in the query

  mysql> SELECT id FROM student WHERE id + 1 = 5;

• selectivity = number of distinct indexed values / number of rows in table. A highly selective index is good because it lets DBMS filter out more rows when it looks for matches. Trade-off:

  • more characters => higher selectivity, more space.
  • less characters => less selectivity, less space.

• Use Covering index: indexes that contain all the data needed to satisfy a query

  • CREATE INDEX idx_foo ON foo (a, b);
  • SELECT b FROM foo WHERE a = 123 AND b = 456;

Transaction

• a logical unit of processing in a DBMS that entails one or more database access operations.
• Purpose: to make sure data in database is consistent.
• Example: Alice transfer 100$ to Bob:

• Subtract 100$ from Alice account
• Add 100$ to Bob account
• If there is no transaction, action 1 can be successful and action 2 fail => Alice lost 100$.

ACID

A set of properties of database transactions intended to guarantee data validity

• Atomicity: each transaction is treated as a single “unit”, which either succeeds completely, or fails completely.

  q1 , q2 => execute q1 successfully, q2 failed => rollback q1 and return error.

• Consistency: data integrity constraints.

  e.g., if we have a constraint, all customer accounts must have a positive balance. If a transaction brings a customer account into a negative balance, that transaction will be rolled back

• Isolation: 2 concurrent transactions are isolated from each other. Each transaction can pretend that it is the only transaction running on the entire DB.

  • This highest isolation level is rarely used because of the performance expense.
  • mysql: default isolation level == repeatable read

• Durability: guarantees that once a transaction has been committed, it will remain committed even in the case of a system failure (e.g., power outage or crash).

• How Database Management Systems (DBMS) store data on a hard disk?

• How DBMS manages its memory (RAM)?

• What is index? How to implement indexes? Best practice for creating indexes?

• SQL fix-sized = 8kb. 1 row: column text 7KB => where to store?

• What is a database index?

• Why don’t we index every column to support fast read?

• How do Hash Indexes work?

• What are its disadvantages?

• Compare B+Tree and B-Tree?

• given B+Tree index (C1, C2, C3), can B+Tree support query on C2?

• Compare B+Tree index and Hash index?

• Should we index boolean column?

  selectivity = 2 / #rows => should not.

• What happens to index when database machine crashes?

  DBMS use an additional data structure on disk called write-ahead log (WAL): append-only file which every B+Tree index modification must be written before it can be applied append-only => fast When the database resumes after a crash, this log is used to restore B+Tree.
