Operating System

Thread - Process

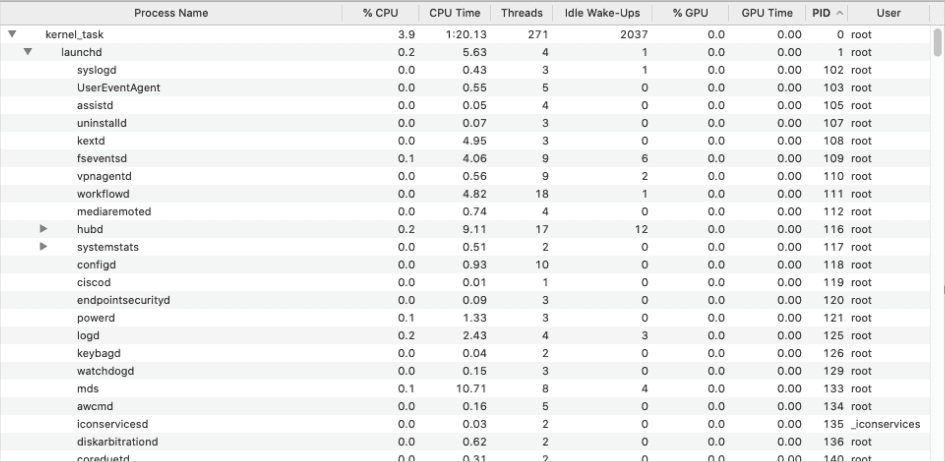

1. Process

• a process is a program in execution.
• a program is not a process, a program becomes a process when an executable file is loaded into memory.
  • MS Word is not a process
  • When you double click on MS Word icon, an MS Word process is launched.
• can have > 1 process associated with the same program
  • e.g: you launch multiple word files by MS Word.
  • 2 processes do not share memory.
• A process includes:
  • program counter: the pointer specifying the
  • next instruction to execute.
  • stack space: temporary data (func params, local variable …)
  • heap space: memory that is dynamically allocated
  • during process runtime.
  • data: contain global variables.
  • text: contain program code.

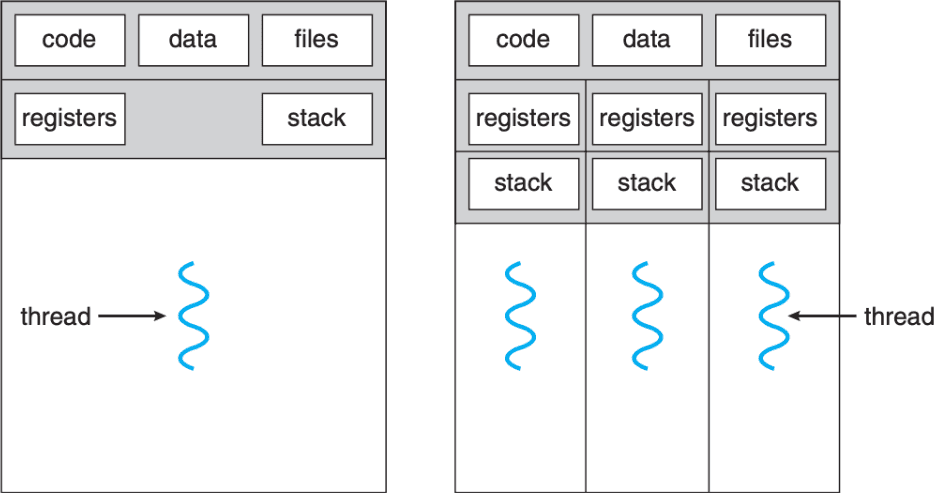

2. Thread

• basic unit of CPU utilization.
• 1 process can have multiple threads.
• 1 thread comprises: thread ID, program counter, register set, stack
• 1 thread shares with other threads of the same process:
  • text section (program code)
  • data section
  • heap space

• Motivation behind Thread:
  • Resource sharing: threads share memory and resource of the process to which they belong to => easier to communicate between threads.
  • Responsive: a program can continue running even if a part of it is blocked.
  • Scalability: multiple threads can run in parallel if computer has multiple processors (cores).

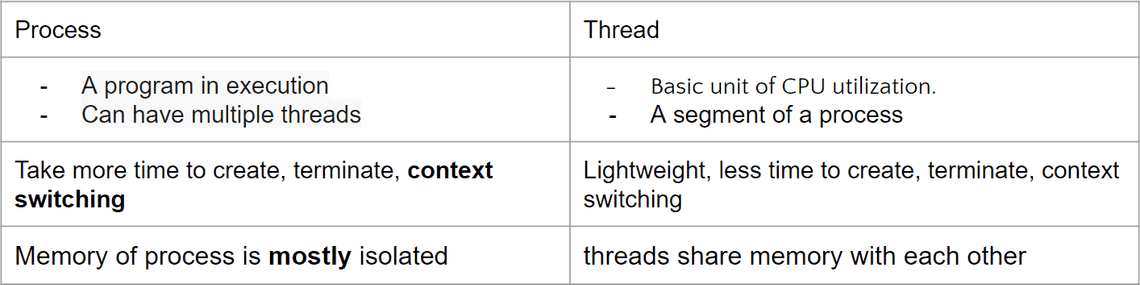

Thread vs Process

Thread pool

• A thread pool is a technique in multithreading programming used to manage and optimize the use of threads in an application. In an application, creating and managing threads can be resource-intensive

• create a number of threads at process startup and place them into a pool threads sit in the pool and wait for work:

  - when a server receives a request/task, it awakes a thread from pool if available and passes it the request/task
  - once thread completes its service, it returns to the pool

• Benefit:

  • reduce thread creation overhead
  • limit number of thread => avoid crash (db, server)
  • separate the task to be performed from the thread creations => we can use diff strategies to schedule the task: execute the task after a delay or periodically.

Heap space - Stack space

Stack space

• a region in RAM used for static memory allocation: local variable, reference to objects in heap space, function params…
• Stack overflow error when full
• Can only be accessed by the owner thread => thread-safe
• Access time is faster.
• After function completes => all data belonging to the function is clean

Heap space

• a region in RAM used for dynamic memory allocation: object (e.g: new keyword in Java)
• Heap Overflow/ Out of memory error when full
• Share between all threads => not thread-safe
• Access time is slower.
• Data in heap is cleaned by Garbage Collector: when objects that cannot be reached by any ref variable in Stack memory. (Java dev take note)

How to avoid Stack overflow

• reduce number of local variable
• avoid recursion, have stop condition.
• keep tree call shallow

Concurrency - Parallelism

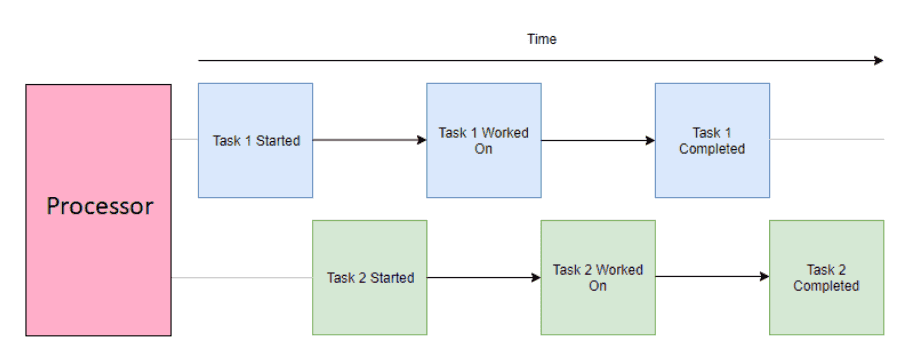

Concurrency

• Multiple tasks are running at the same time, but not necessarily simultaneously.

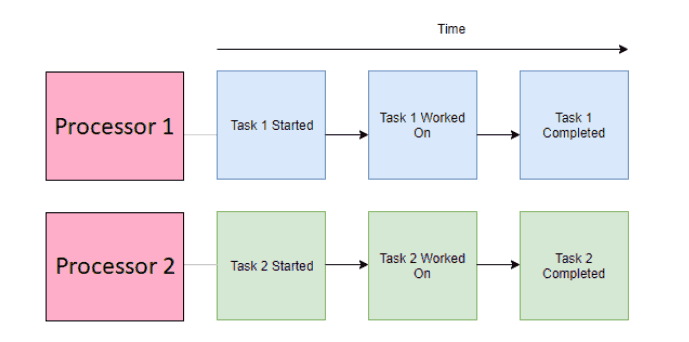

Parallelism

• Multiple tasks are running simultaneously (parallelly).

Amdahl Law

• The Amdahl’s Law is an important principle in the field of parallel computing and system performance.
• Speed up = 1 / (1 - f + f/F)
  • f: percentage of improvable work
  • F: improvement factor
• Example: you have improved the speed of 10% of a program by 2 times. What is the overall speedup of your program?
  • Speed up = 1 / (1 - 10% + 10%/2) = 1.053

Race condition and Locks

Race condition

• A race condition is a situation that occurs in concurrent or parallel programming when the outcome of a program depends on the relative timing or interleaving of multiple threads or processes. It arises when two or more threads or processes access shared data or resources in a way that leads to unexpected and non-deterministic behavior.

• The situation when 2 or more threads update a shared resource simultaneously leads to the shared resource’s uncertain state.

Locks

• A lock that can be held by at most one thread at a time. If another thread tries to acquire a spin lock while it is already held, the thread busy loops (spins) waiting for the lock to become available.

• Spin lock is optimal for short hold time because if a section is locked, other threads keep waiting and do nothing useful => waste of processor resources.

• You cannot sleep while holding a spinlock.

E.g: thread A acquires spin lock L, then sleeps. Thread B tries to acquire L, but because L was acquired by A, B has to wait. If the computer only has 1 core, we have a deadlock: B waits for A to release L A is sleeping and cannot wake up because B is using processor for spinning.

Semaphore

• A semaphore is a synchronization primitive used in concurrent programming to control access to a shared resource by multiple threads or processes.

• When a thread attempts to acquire an unavailable semaphore, the semaphore places the task onto a wait queue and puts the task to sleep. The processor is then free to execute other code. When the semaphore becomes available, one of the tasks on the wait queue is awakened so that it can then acquire the semaphore.

E.g:

• When a person (thread) reaches the door and it is locked, instead of spinning, he/she puts his name on a list and grabs a ticket then sleeps.

• When the person inside the room leaves, he check the list and goes over the first name, waking him up and gives him the key.

• Counting semaphore: Semaphore allows more than 1 lock holder. It maintains a number called count, which is the number of available resources.

• Support 2 functions

  • down() => acquire the semaphore and decrease count by 1. (count -= 1)
  • up() => release the semaphore and increase count by 1. (count++)
  • When count == 0, thread goes to sleep and waits to be woken up.

Mutex Lock

• a lock we set before using a shared resource and release after using it. When the lock is set, no other thread can access the locked region of code.
• Mutex lock will only be released by the thread that locks it.

Mutex vs Semaphore

• A mutex object allows multiple threads to access a single shared resource but only one at a time. (n threads => 1 resource)
• Semaphore allows multiple threads to access the finite instance of the resource until available. (n threads => m resources)
• In mutex, the lock can be acquired and released by the same thread simultaneously.
• Value of the semaphore variable can be modified by any threads that need some resource
• Mutex ⇔ Binary Semaphore (Semaphore with S = 0 or 1).

Virtual memory

• A technique that allows the execution of processes that are not completely in memory.
• Benefit: programs can be larger than physical memory (RAM).
• Separation of logical memory (memory space) and physical memory (RAM) => allow large virtual memory to be provided for programmers when only a smaller physical memory is available.
