System Design

Main concerns

Reliability

• The system should continue to work correctly even in the face of adversity (hardware or software faults, and even human error)

Availability = Uptime / (Uptime + DownTime)

• Usually expressed in terms of the number of “nines” we would like to provide: 99.9%, 99.99%, or 99.999% availability.

• To achieve High Availability:

  • server has to be stateless
  • make sure each server can handle extra load

Scalability

• The ability of a system to continue to work as user load and data grow.

• Common metrics:

  • Throughput: the number of queries or requests processed in a given period. qps (query per second), rps (request per second).
  • Latency (Response time): network delay + latency.

1. Latency

• Mean: average of all request’s latency

request 1, request 2, …, request 9: 100ms request 10: 3s => mean latency = 390ms

• Percentile: the response time threshold at which x% of request are faster than that particular threshold.

p95 = 100ms => 95 out of 100 requests take less than 100ms, 5 requests take > 100ms.

• Causes of high latency:

  • complex computation (O(n^2) vs O(n))
  • storage delay (RAM vs hard disk)
  • distance (use CDN (static: html, css, image))
  • protocol: gPRC http 2, REST API http 1.x

• reduce Latency

  • Reduce computation complexity. (e.g O(n^2) => O(logn))
  • local cache: cache in RAM of the server.
  • shared cache: use a dedicated server just for cache (REDIS, Memcached)
  • Optimize Database query (indexes, better query).
  • Use CDN for static data (HTML, CSS, image …)
  • Parallelism/Concurrency

2. Throughput

• increase throughput:

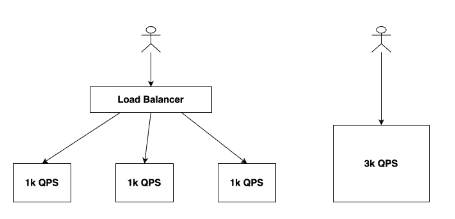

  • Vertical scaling: use a more powerful machine.
  • Horizontal scaling: distribute load access to multiple smaller machines.
  • Reduce latency

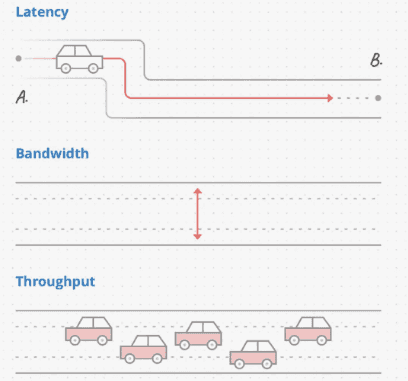

3. Throughput and Latency

• High Latency can cause Low Throughput

CAP theorem

• It is impossible to build an implementation of read-write storage in an asynchronous network that satisfies all of the following three properties: Consistency, Availability and Partition tolerance.

Consistency

• If operation B started after operation A successfully completed, then operation B must see the system in the same state as it was on completion of operation A or a newer state.

• Read-After-Write: Any read operation that begins after a write operation completes must return that value or the result of a later write operation

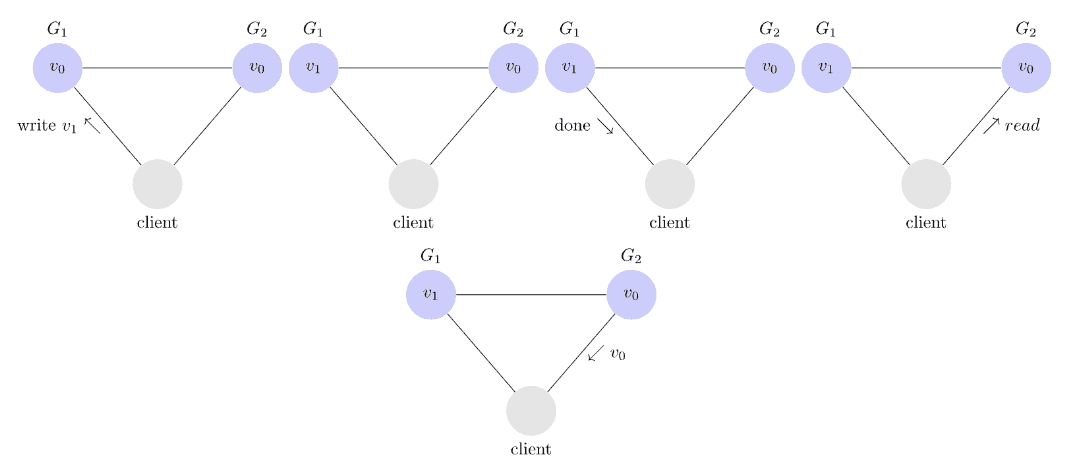

• Example of inconsistency:

Availability

• every request received by a non-failing node in the system must result in a [non-error] response. (i.e no down-time)

Partition Tolerance

• The system continues to operate despite network partitions or messages being lost between nodes
• you’re communicating over an asynchronous network that may delay or drop messages

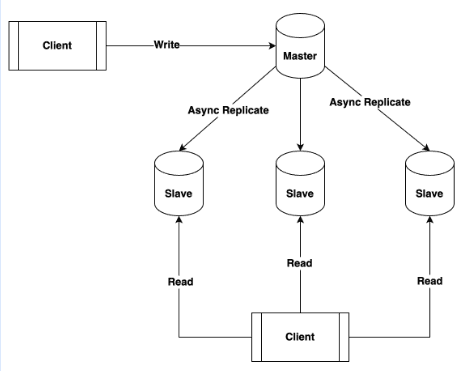

Master-Slave

-Replication is asynchronously so it is not consistent.

• If client is partitioned from Master it cannot write => not available. => it is just P

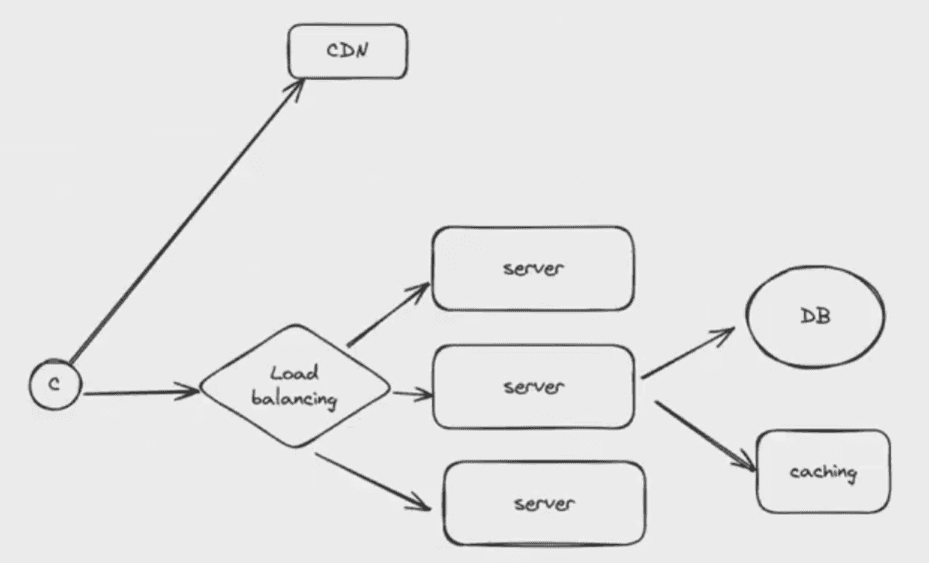

Components of a system

Web Server

Database

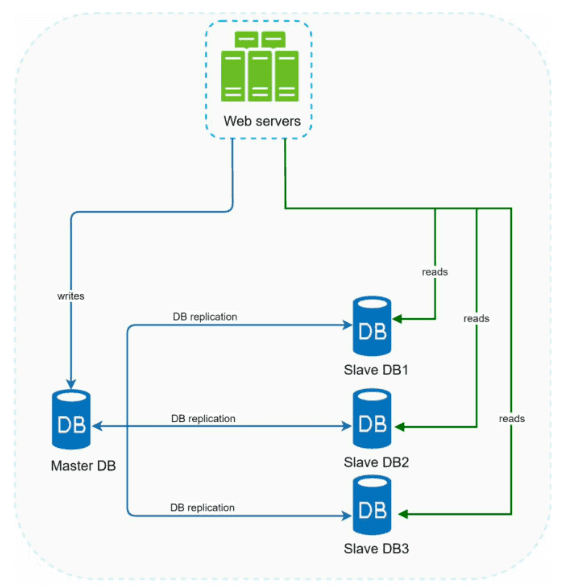

Replication

• 1 Master DB and multiple Slave DBs. Master DB serves all update operations (insert, update, delete).

• Data is synced from Master DB to Slave DBs asynchronously. Slave DBs is read-only (select)

• Benefits:

  • Performance: more read queries can be processed in parallel. => increase read Throughput QPS (query per second).
  • High Availability: if one Slave crashes, the others still can serve.

• Drawback

  • Slave delay: data in Slave is not up to date.

• In practice, Sharding and Replication often go together: each Shard is a cluster of 1 master + n slaves.

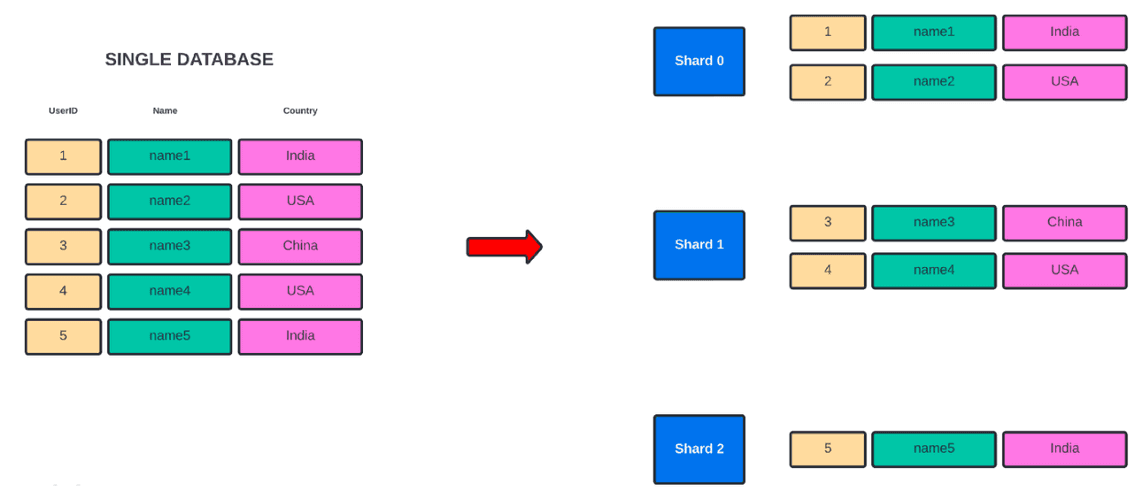

Sharding

• storing a large database across multiple machines.

• Why:

  • A single machine, or database server, can store only a limited amount of data.
  • The Database becomes a bottleneck if the data volume becomes too large and too many users attempt to use the application to read or save information simultaneously.

• Benefits:

  • Reduce Latency
  • Increase throughput
  • Improve Availability
  • Scalable

• Challenges

  • Some shards become unbalanced due to the uneven distribution of data.

    E.g: a single physical shard that contains customer names starting with A receives more data than others.

  • Application complexity: Most database management systems do not have built-in sharding features. Database designers and software developers must manually split, distribute, and manage the Database.

  • Infra & operational cost

• How

1. Shard by Key Range

• Assign a continuous range of keys to each shard.
• Cons: can overload a single physical node. E.g., shard A (containing names that start with A to I) might have a much larger number of rows of data than shard C (containing names that start with T to Z).

2. Shard by Hash of key

• shard key = hash(row) % N. => if N change, we need to reshard.

• name = “quang” => hash(“quang”) = 12312834 % 3 = 1

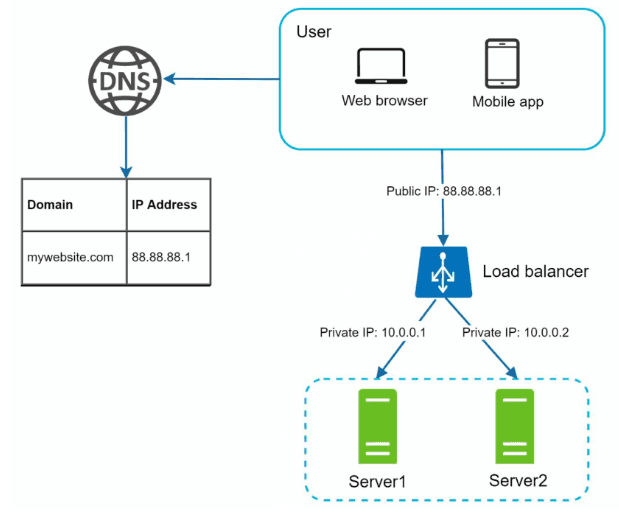

Load balancer (LB)

• When #user increase, it reaches the web server’s load limit => users experience slow response or timeout. adding more servers to handle user requests. => need a Load Balancer (LB) to distribute the traffic among web servers.

• Benefits:

  • Distributes client requests or network load efficiently across multiple servers
  • Ensures high availability and reliability by sending requests only to online servers
  • Provides the flexibility to add or remove servers on demand.

• LB Algorithms

  • Round robin: requests are distributed across the group of servers sequentially.

    e.g.: there are three servers 1st req goes to 1st server 2nd req goes to 2nd server 3rd req goes to 3rd server 4th req goes to 1st server

  • Weighted Round robin: a weight is assigned to each server based on criteria chosen by the site administrator. For example, server A is assigned a weight of 3 and server B a weight of 1. The load balancer forwards three requests to server A for each one it sends to server B.
  • Modulo Hashing: request i goes to server (i%N).
    • when #server changes, almost all requests will be redirected to another server:

      e.g: #server = 5, req_id = 7 is routed to server_id = 7 % 5 = 2

    • Cost of change
  • Least Connections: new request is sent to the server with the fewest current connections to clients.
  • Least response time

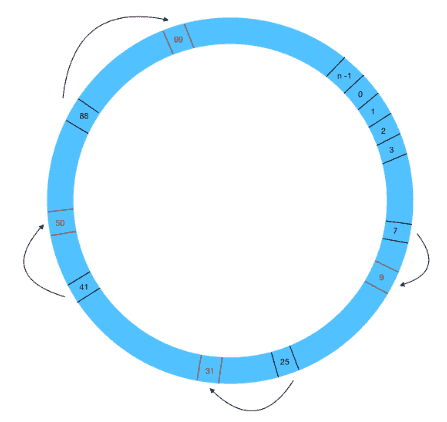

Ring of hash (Consistent Hashings)

• map each user’s request to a slot on the ring

  r = hash(req_id) % n

• map each server_id to a slot on the ring as well

  s = hash(server_id) % n

• use balanced BST to maintain the ring (TreeMap in Java, map in C++, Orderred Dic in Python)

  • add a new server costs O(logn)
  • remove a server costs O(logn)
  • find nearest server on the right side costs O(logn)

Cache

• A temporary storage area stores the result of expensive responses or frequently accessed data in primary memory so that subsequent requests are served more quickly.

  • Local Cache. (remember Dynamic programming)
  • Shared Cache: Redis, Memcached

• Benefits:

  • Better performance (Cache is faster than DB)
  • Reduce workload on DB (Cache’s QPS is much higher than DB)
  • Can scale server, Cache, and DB independently.

Caching strategies

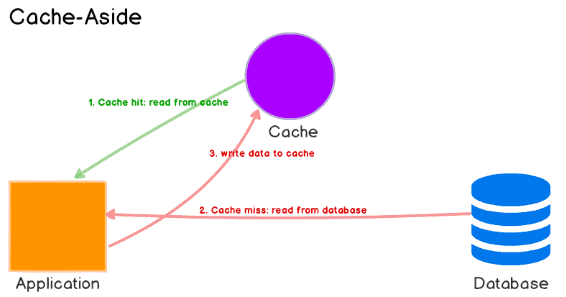

1. Cache Aside

• Use for heavy-read workload

• pitfalls

  Stale Set: a stale set occurs when a client sets a stale value in Cache

  • Client C1 get(k), k doesn’t exist in Cache (cache miss)
  • Client C1 query(k) <- 1. C1 is somehow slow at this point (slow network)
  • Client C2 update(k,2)
  • Client C2 del(k) in cache
  • Client C1 set(k,1) (C1 resumes)

  Thundering herd when a specific key undergoes heavy read-and-write activity.

  • Key k is trendy; lots of clients call get(k)
  • C1 get(k), Cache returns v1 very fast (cache hit)
  • C2 update k, causing it to be invalidated in Cache, del(k) in Cache
  • Now, every other client that tries to get(k) will be cache miss, so they will try query(k), which leads to overload Database

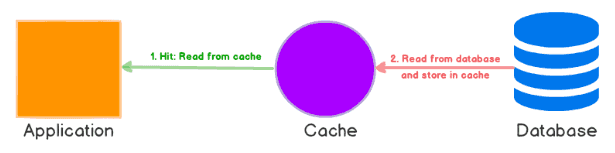

2. Read through

• for heavy-read workload

• need support from cache library to read and write from DB. While in cache-aside, this is handled in Application.

3. Write through

• data is first written to the cache and then to the database
• no need cache invalidation
• usually use with Read-Through

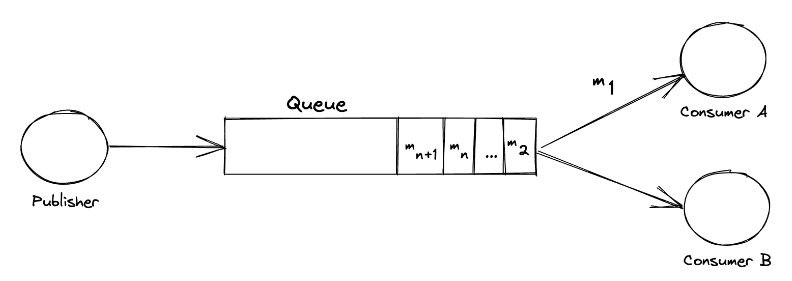

Message queue

• The Message queue is a durable component that supports asynchronous communication.

• Message queues are often used when we want to delegate work from a service. Ensure that the work is only executed one time

• Benefit:
  • decouple the system, can scale the producer and consumer independently
  • async communication, use for time-consuming task: photo customisation (crop, sharpening, blurring …), convert video
  • notification
  • image/video processing

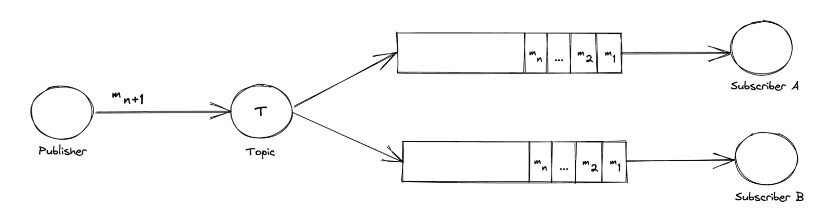

Pub-Sub

• A durable component that support asynchronous communication.

• Used where we need a guarantee that each subscriber gets a copy of the message.

• What is maximum downtime per week for a system that has 99.99% availability?

  0.01 7 24 * 60 = 100 mins

• What if there is only 1 Slave and it crashes? Master still alive => ?

  read operations will be directed to the master database temporarily

• What if Master crashes? Slaves are still alive

  • a slave database will be promoted to be the new master.
  • data in the promoted slave is not up to date

• Cache Aside pitfalls
