WPF Advanced Topics

What is DependencyProperty in WPF?

In Windows Presentation Foundation (WPF), a DependencyProperty is a special type of property that extends the functionality of normal .NET properties. It is used primarily for UI-related properties to support features such as data binding, animation, styling, and property value inheritance.

Defining a DependencyProperty

public class MyControl : Control
{
    // Registering a DependencyProperty
    public static readonly DependencyProperty MyPropertyProperty =
        DependencyProperty.Register(
            "MyProperty",
            typeof(string),
            typeof(MyControl),
            new PropertyMetadata("Default Value"));

    // .NET property wrapper
    public string MyProperty
    {
        get { return (string)GetValue(MyPropertyProperty); }
        set { SetValue(MyPropertyProperty, value); }
    }
}

Using DependencyProperty

<local:MyControl MyProperty="Hello, World!" />

How do you create a custom control in WPF?

Define the Custom Control Class

using System.Windows;
using System.Windows.Controls;

namespace MyCustomControls
{
    public class MyCustomControl : Control
    {
        static MyCustomControl()
        {
            DefaultStyleKeyProperty.OverrideMetadata(typeof(MyCustomControl),
                new FrameworkPropertyMetadata(typeof(MyCustomControl)));
        }

        // Define Dependency Properties here if needed
        public static readonly DependencyProperty MyPropertyProperty =
            DependencyProperty.Register(
                "MyProperty",
                typeof(string),
                typeof(MyCustomControl),
                new PropertyMetadata("Default Value"));

        public string MyProperty
        {
            get { return (string)GetValue(MyPropertyProperty); }
            set { SetValue(MyPropertyProperty, value); }
        }
    }
}

Define the Default Style

<ResourceDictionary
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:local="clr-namespace:MyCustomControls">

    <Style TargetType="{x:Type local:MyCustomControl}">
        <Setter Property="Template">
            <Setter.Value>
                <ControlTemplate TargetType="{x:Type local:MyCustomControl}">
                    <Border Background="LightGray" BorderBrush="Black" BorderThickness="1">
                        <TextBlock Text="{TemplateBinding MyProperty}"
                                   VerticalAlignment="Center" HorizontalAlignment="Center"/>
                    </Border>
                </ControlTemplate>
            </Setter.Value>
        </Setter>
    </Style>
</ResourceDictionary>

Use the Custom Control in Your Application

<Window x:Class="WpfApp.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:local="clr-namespace:WpfApp"
        xmlns:custom="clr-namespace:MyCustomControls;assembly=MyCustomControls"
        Title="MainWindow" Height="350" Width="525">
    <Grid>
        <custom:MyCustomControl MyProperty="Hello, Custom Control!" />
    </Grid>
</Window>

Explain the Visual and Logical Tree in WPF.

In WPF, understanding the Visual Tree and Logical Tree is crucial for grasping how the framework renders UI elements and manages relationships between them. Both trees represent different aspects of the element hierarchy in a WPF application.

Logical Tree

The Logical Tree represents the hierarchical relationships between elements that define the user interface (UI) and behavior. It is primarily concerned with the structure and content of the WPF application and is used for the following:

• Element Relationships: Defines how elements are related to each other, such as a Window containing a Grid, which contains Button elements.
• Event Routing: Manages how routed events travel through the element hierarchy.
• Resource Lookup: Facilitates resource lookups, such as styles and templates, which can be defined at any level in the hierarchy.
• Data Binding: Supports data binding, where elements can inherit data contexts from their parent elements.

<Window>
    <StackPanel>
        <Button Content="Button 1" />
        <Button Content="Button 2" />
    </StackPanel>
</Window>

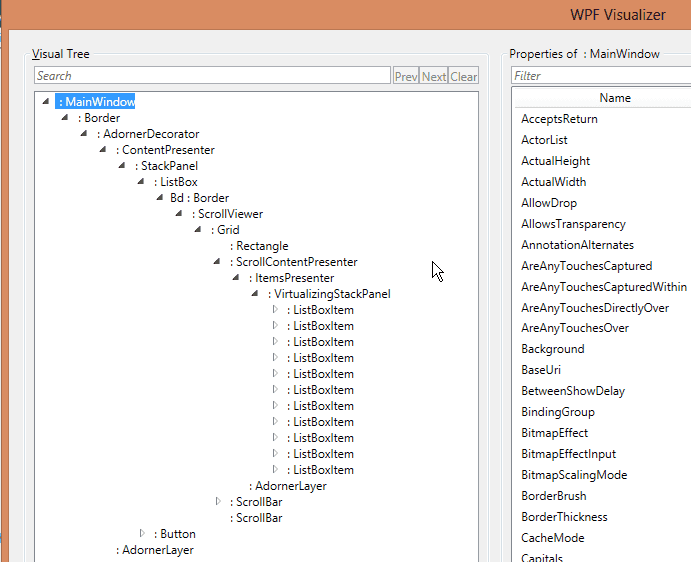

Visual Tree

The Visual Tree represents the rendering structure of the elements. It includes all the visual elements, including those generated by control templates and styles. The Visual Tree is essential for rendering, hit-testing, and animations. It is used for:

• Rendering: Defines the visual structure of elements, including elements created by templates and styles.
• Hit Testing: Determines which visual element is under a specific point (e.g., mouse click).
• Animations: Manages animations applied to visual elements.
• Transforms and Effects: Manages transforms (like rotate, scale) and effects (like drop shadow) applied to elements.

What is a RoutedEvent in WPF?

In Windows Presentation Foundation (WPF), a RoutedEvent is a type of event that can invoke handlers on multiple listeners in a tree of elements. Routed events are a core part of the WPF event system, providing a way to handle events that can traverse the element tree rather than being confined to a single element. There are three main routing strategies for routed events in WPF:

• Direct: This routing strategy behaves similarly to standard .NET events. The event is raised and handled on the same element, and it does not propagate to other elements.
• Bubbling: In this routing strategy, the event starts at the source element (the element that raised the event) and then bubbles up to its parent elements in the logical tree, potentially reaching the root element.
• Tunneling: Tunneling events start at the root of the logical tree and tunnel down to the source element that raised the event. Tunneling events are often used in conjunction with bubbling events to ensure that parent elements can preemptively handle or manipulate an event before it reaches the source element.

Below is a complete example demonstrating the use of a routed event in WPF.

Create a new class file for your custom control. Let's call it MyCustomControl.cs.

using System.Windows;
using System.Windows.Controls;

namespace RoutedEventExample
{
    public class MyCustomControl : Control
    {
        // Register a routed event using the bubbling strategy
        public static readonly RoutedEvent MyRoutedEvent = EventManager.RegisterRoutedEvent(
            "MyEvent", RoutingStrategy.Bubble, typeof(RoutedEventHandler), typeof(MyCustomControl));

        // Provide CLR accessors for the event
        public event RoutedEventHandler MyEvent
        {
            add { AddHandler(MyRoutedEvent, value); }
            remove { RemoveHandler(MyRoutedEvent, value); }
        }

        // Method to raise the event
        protected void RaiseMyEvent()
        {
            RoutedEventArgs newEventArgs = new RoutedEventArgs(MyCustomControl.MyRoutedEvent);
            RaiseEvent(newEventArgs);
        }

        // Override the OnClick method to raise the event when the control is clicked
        protected override void OnMouseLeftButtonDown(System.Windows.Input.MouseButtonEventArgs e)
        {
            base.OnMouseLeftButtonDown(e);
            RaiseMyEvent();
        }
    }
}

Next, add the custom control to your main window's XAML file, MainWindow.xaml.

<Window x:Class="RoutedEventExample.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:local="clr-namespace:RoutedEventExample"
        Title="MainWindow" Height="350" Width="525">
    <Grid>
        <local:MyCustomControl x:Name="myCustomControl" Width="200" Height="100" Background="LightBlue" Margin="10"/>
    </Grid>
</Window>

In the code-behind file for the main window, MainWindow.xaml.cs, handle the routed event.

using System.Windows;

namespace RoutedEventExample
{
    public partial class MainWindow : Window
    {
        public MainWindow()
        {
            InitializeComponent();
            // Add the event handler for the custom routed event
            myCustomControl.AddHandler(MyCustomControl.MyRoutedEvent, new RoutedEventHandler(MyCustomControl_MyEvent));
        }

        // Event handler method
        private void MyCustomControl_MyEvent(object sender, RoutedEventArgs e)
        {
            MessageBox.Show("Routed event received!");
        }
    }
}

What is the difference between a RoutedCommand and a normal command?

In WPF, commands are a powerful way to handle user input actions in a decoupled manner, allowing for a clean separation between the UI and the logic that handles the actions. There are two main types of commands in WPF: RoutedCommand and normal command (typically represented by the ICommand interface). Here are the key differences between them:

RoutedCommand

Routing Mechanism: RoutedCommands use the WPF routing infrastructure, which means they can bubble up or tunnel down the element tree. This allows any element in the tree to handle the command, not just the one that initiated it.

XAML

<Window x:Class="RoutedCommandExample.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        Title="MainWindow" Height="350" Width="525">
    <Window.CommandBindings>
        <CommandBinding Command="local:CustomCommands.MyRoutedCommand" Executed="MyRoutedCommand_Executed" CanExecute="MyRoutedCommand_CanExecute"/>
    </Window.CommandBindings>
    <Grid>
        <Button Command="local:CustomCommands.MyRoutedCommand" Content="Click Me" />
    </Grid>
</Window>

Code-behind:

using System.Windows;
using System.Windows.Input;

namespace RoutedCommandExample
{
    public partial class MainWindow : Window
    {
        public MainWindow()
        {
            InitializeComponent();
        }

        private void MyRoutedCommand_Executed(object sender, ExecutedRoutedEventArgs e)
        {
            MessageBox.Show("RoutedCommand executed!");
        }

        private void MyRoutedCommand_CanExecute(object sender, CanExecuteRoutedEventArgs e)
        {
            e.CanExecute = true;
        }
    }

    public static class CustomCommands
    {
        public static readonly RoutedCommand MyRoutedCommand = new RoutedCommand();
    }
}

Normal Command (ICommand)

No Routing: Normal commands do not use the WPF routing infrastructure. They are typically handled by the specific control that the command is associated with.

ViewModel

using System;
using System.Windows.Input;

namespace NormalCommandExample
{
    public class MainViewModel
    {
        public ICommand MyCommand { get; }

        public MainViewModel()
        {
            MyCommand = new RelayCommand(ExecuteMyCommand, CanExecuteMyCommand);
        }

        private void ExecuteMyCommand(object parameter)
        {
            MessageBox.Show("Normal command executed!");
        }

        private bool CanExecuteMyCommand(object parameter)
        {
            return true;
        }
    }

    public class RelayCommand : ICommand
    {
        private readonly Action<object> execute;
        private readonly Predicate<object> canExecute;

        public RelayCommand(Action<object> execute, Predicate<object> canExecute = null)
        {
            this.execute = execute;
            this.canExecute = canExecute;
        }

        public bool CanExecute(object parameter)
        {
            return canExecute == null || canExecute(parameter);
        }

        public void Execute(object parameter)
        {
            execute(parameter);
        }

        public event EventHandler CanExecuteChanged
        {
            add { CommandManager.RequerySuggested += value; }
            remove { CommandManager.RequerySuggested -= value; }
        }
    }
}

XAML

<Window x:Class="NormalCommandExample.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:local="clr-namespace:NormalCommandExample"
        Title="MainWindow" Height="350" Width="525">
    <Window.DataContext>
        <local:MainViewModel/>
    </Window.DataContext>
    <Grid>
        <Button Command="{Binding MyCommand}" Content="Click Me" />
    </Grid>
</Window>
