WPF ROUTED EVENTS

Arouted event is a type of event that can invoke handlers on multiple listeners in an element tree rather than just the object that raised the event. It is registered with the WPF event system. RoutedEvents have three main routing strategies which are as follows;

• Direct Event
• Bubbling Event
• Tunnel Event

Direct Event

A direct event is similar to events in Windows forums which are raised by the element in which the event is originated.

Unlike a standard CLR event, direct routed events support class handling and they can be used in Event Setters and Event Triggers within your style of your Custom Control.

A good example of a direct event would be the MouseEnter event.

Bubbling Event

A bubbling event begins with the element where the event is originated. Then it travels up the visual tree to the topmost element in the visual tree. So, in WPF,the topmost element is most likely a window.

Tunnel Event

Event handlers on the element tree root are invoked and then the event travels down the visual tree to all the
children nodes until it reaches the element in which the event originated

The difference between a bubbling and a tunneling event is that a tunneling event will always start with a preview

Custom Routed Events

Let’s takean example to understand more about custom routed events. Follow the steps given below

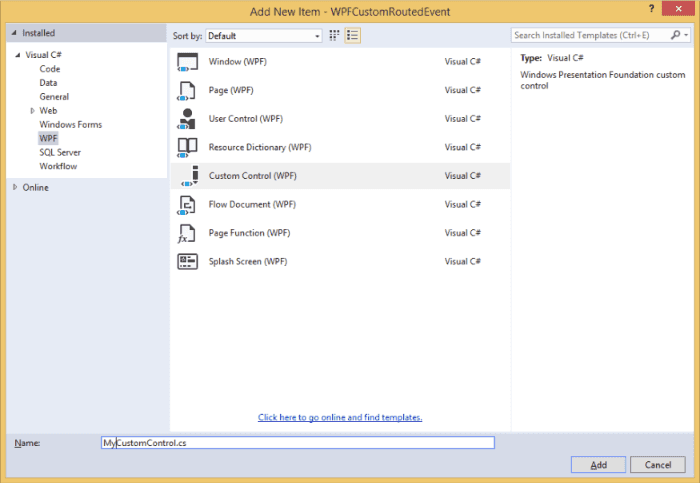

Click theAddbutton and you will see that two new files (Themes/Generic.xaml and MyCustomControl.cs) will be added in your solution

// Generic.xaml
<ResourceDictionary
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:local="clr-namespace:FirstProject.Components">
    <Style TargetType="{x:Type local:MyCustomControl}">
        <Setter Property="Margin" Value="50"/>
        <Setter Property="Template">
            <Setter.Value>
                <ControlTemplate TargetType="{x:Type local:MyCustomControl}">
                    <Border Background="{TemplateBinding Background}"
                            BorderBrush="{TemplateBinding BorderBrush}"
                            BorderThickness="{TemplateBinding BorderThickness}">
                        <Button x:Name="PART_Button" Content="Click Me" />
                    </Border>
                </ControlTemplate>
            </Setter.Value>
        </Setter>
    </Style>
</ResourceDictionary>

// MyCustomControl.cs
using System.Windows;
using System.Windows.Controls;

namespace FirstProject.Components
{
    public class MyCustomControl : Control
    {
        static MyCustomControl()
        {
            DefaultStyleKeyProperty.OverrideMetadata(typeof(MyCustomControl), new FrameworkPropertyMetadata(typeof(MyCustomControl)));
        }

        public override void OnApplyTemplate()
        {
            base.OnApplyTemplate();

            //demo purpose only, check for previous instances and remove the handler first
            var button = GetTemplateChild("PART_Button") as Button;
            if (button != null) button.Click += Button_Click;
        }

        private void Button_Click(object sender, RoutedEventArgs e)
        {
            RaiseClickEvent();
        }

        public static readonly RoutedEvent ClickEvent =
            EventManager.RegisterRoutedEvent("Click", RoutingStrategy.Bubble,
                typeof(RoutedEventHandler),
                typeof(MyCustomControl));

        public event RoutedEventHandler Click
        {
            add { AddHandler(ClickEvent, value); }
            remove { RemoveHandler(ClickEvent, value); }
        }

        protected virtual void RaiseClickEvent()
        {
            RoutedEventArgs args = new RoutedEventArgs(MyCustomControl.ClickEvent);
            RaiseEvent(args);
        }
    }
}

Here is the implementation in MainWindow.xaml to add the custom control with a routed event Click

using System;
using System.Windows;

namespace FirstProject
{
    /// <summary>
    /// Interaction logic for MainWindow.xaml
    /// </summary>
    public partial class MainWindow : Window
    {
        public MainWindow()
        {
            InitializeComponent();
        }

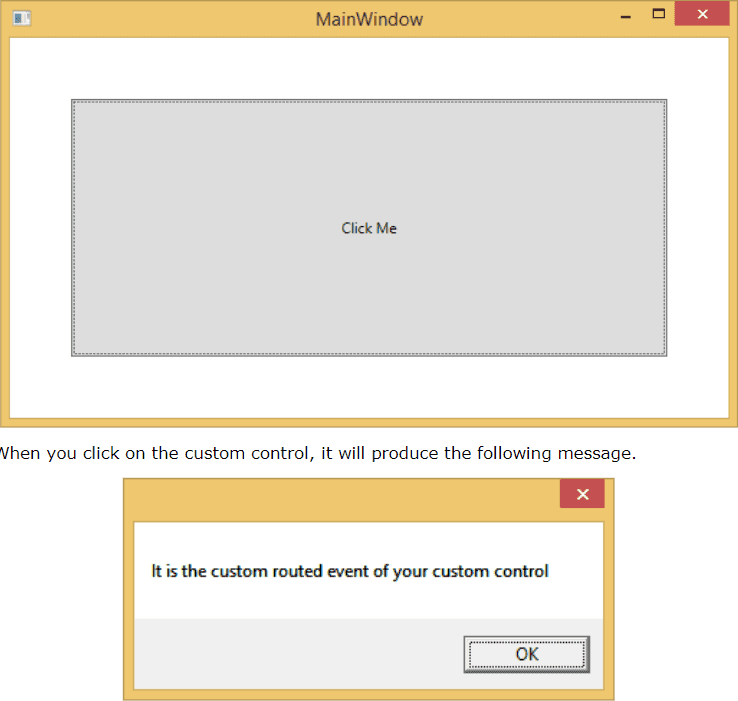

        private void MyCustomControl_Click(object sender, RoutedEventArgs e)
        {
            MessageBox.Show("It isthe custom routed event of your custom control");
        }
    }
}

<Window x:Class="FirstProject.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:FirstProject.Components"
        mc:Ignorable="d"
        Title="MainWindow" Height="450" Width="800">
    <Grid>
        <local:MyCustomControl Click="MyCustomControl_Click"/>
    </Grid>
</Window>
